AK-Builder AK74 5.45x39 barrel

Seeing that it seems to be impossible to find any information on US made AK barrels I thought I would post this here. I will update at the end of the project as well as list any issues noted to me via the builder.

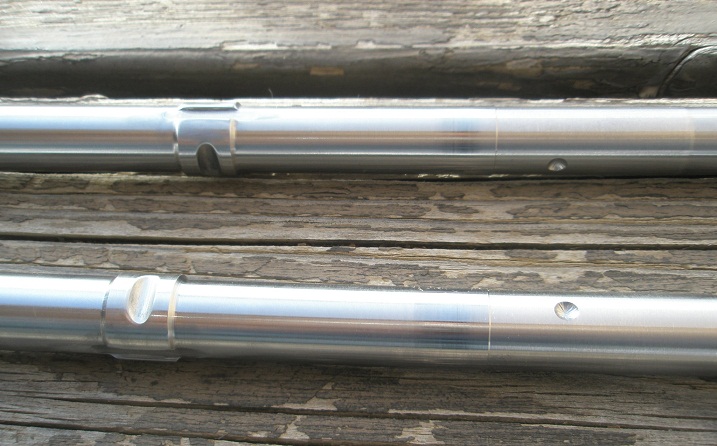

For my 2 Bulgarian kits I decided on using the barrels that AK-Builder sells. From what I can tell online depending on what you read these are either Green Mountain blanks or Montana Rifleman blanks and the external contour is finished by Curtis at AK-Builder.

From AK-Builder website:
"These barrels are made from 4140 rifle blanks with a .214" bore and 1-8 twist. Each barrel is stamped USA 5.45 for 922r compliance.

The gas port is drilled, handguard retainer is cut and extractor clearance is cut on the chamber end."


From my 2 samples the gas port was not drilled, it is started but does not go all the way through to the bore which is probably a good thing as some gas blocks are 90 degree and some are 45 degree. I did not get a chrome lined barrel, they were back ordered and I did not want to wait for them and I am not sold that a barrel needs to be chrome lined anyway. The machine work looks nice and clean.

Crown looks good but I am contemplating having a target crown put on while they are blank just for the hell of it, what could it hurt? Thoughts on this from the peanut gallery?

Barrel diameter measurements with calipers are:

Trunion = 22mm, Rear sight block = 17.52mm, Gas Block = 15.05, and front sight = 14.55.

I plan on parking these this weekend and then sending them out with my parts to have them populated and headspaced.





__________________
There is no theory of evolution, just a list of creatures Chuck Norris allows to live.
def90 is online now   Reply With Quote
Old November 21, 2012, 23:08   #2
cbr954fz1
Registered

FALaholic #: 35401
Join Date: Apr 2008
Location: florida
Posts: 1,097
thought about doing acouple myself but i'm waiting to see how yours come out... please keep us updated..cbr
cbr954fz1 is offline   Reply With Quote
Old December 08, 2012, 12:58   #3
def90
Dinosaur
Silver Contributor

FALaholic #: 50609
Join Date: Nov 2009
Location: The Peoples' Republic of Boulder, Colorado
Posts: 10,599
Had 11 degree target crowns pt on the barrels this week.

__________________
There is no theory of evolution, just a list of creatures Chuck Norris allows to live.
def90 is online now   Reply With Quote
Old December 11, 2012, 15:26   #4
littlematt
Registered

FALaholic #: 64395
Join Date: Oct 2011
Location: louisiana
Posts: 282
very cool. i can't wait to hear how they shoot
littlematt is offline   Reply With Quote
Old December 14, 2012, 02:22   #5
MajHenryWest
Senior Member
Gold Contributor

MajHenryWest's Avatar

FALaholic #: 11906
Join Date: Sep 2003
Posts: 711
Question Question

What does it mean to have a barrel "populated"?
__________________
******************************
"Steel is Strong because it Knows the Hammer and White Heat." - Johnny Cash, These Things Shall Pass
MajHenryWest is offline   Reply With Quote
Old December 14, 2012, 03:03   #6
ALL FAL
Registered
Contributor

FALaholic #: 24447
Join Date: Jan 2007
Location: Oregon
Posts: 4,351
Barreling the trunion and setting headspace, basic set up of an new barrel for an AK.
I hope this is right.

I have heard of Copulated barrels, Hehe.

With some tuned ammo that AK should really perform.
ALL FAL is online now   Reply With Quote
Old December 15, 2012, 00:10   #7
def90
Dinosaur
Silver Contributor

FALaholic #: 50609
Join Date: Nov 2009
Location: The Peoples' Republic of Boulder, Colorado
Posts: 10,599
Quote:
Originally Posted by MajHenryWest View Post
What does it mean to have a barrel "populated"?

Taking all of the components such as front sight block, gas block and rear sight block and installing them onto a virgin barrel.
